SemanticDistance


SemanticDistance website

semantic relations between cat, dog, leash

GitHub tag (latest by
date) Maintenance Lifecycle Depsy License R-CMD-check.yaml

Getting Help

Thank you for using SemanticDistance. For bugs, feature requests, and general questions please reach out via one of the following options:

Data Compatibility

SemanticDistance can compute pairwise semantic distance relationships in ordered and unordered language samples, including:
Monologues: Any ordered text sample NOT delineated by a talker/speaker (e.g., stories, narratives). The minimal requirement for a monologue is one row and one column with some text in it.
Dialogues: An ordered language sample split by a talker/speaker/interlocutor factor. The minimum requirment is two cells with interlocutor identity and some text.
Word Pairs in Columns: Paired string data arrayed across two columns (e.g., Dog-Leash).
Unordered Word Lists: Unordered list of words (nominally one column, all text in one row) that will be transformed into a distance matrix, network model, or dendrogram

Prep Data Outside the Package

1) Store your text and project files within a dedicated folder/directory (e.g., ‘mytexts/’)
2) Format your data as CSV or txt. Although SemanticDistance is fairly robust to different character encodings, many proograms such as Excel introduce weird hidden characters into strings.
3) Label your target text and metadata columns offline however you like (e.g., mytext, word, langoutput)
4) Import your text and associated metadata (e.g., document_id, timestamps, etc.) as a dataframe.
5) Identify the format of your sample (e.g., monologue, dialogue, columns, unstructured).
6) Install and load the SemanticDistance package
7) Choose a principled set of cleaning parameters (e.g., should I omit stopwords? should I lemmatize?)

Install and Load the Package

Install the development version of SemanticDistance from GitHub using devtools.

# Check if devtools is installed, if not install it
if (!require("devtools", quietly = TRUE)) {
  install.packages("devtools")
}

# Load devtools
library(devtools)

# Check if SemanticDistance is installed, if not install from GitHub
if (!require("SemanticDistance", quietly = TRUE)) {
  devtools::install_github("Reilly-ConceptsCognitionLab/SemanticDistance")
}

# Load SemanticDistance
library(SemanticDistance)


Monologues

Step 1: Clean Monologue Transcript (clean_monologue)

Transforms all text to lowercase then optionally cleans (omit stopwords, omit non-alphabetic chars), lemmatizes (transforms morphological derivatives of words to their standard dictionary entries), and splits multiword utterances into a one-word-per row format. You can generally leave split_strings in its default state (TRUE). ‘clean_monologue’ appends several new variables to your original dataframe: id_row_orig a numeric identifier marking the original row where a word or group of words appeared; ’id_row_postsplit a unique identifier marking each word’s ordered position in the dataframe after splitting multiword utterances across rows; word_clean result of all cleaning operations, needed for distance calculations.

Arguments to ‘clean_monologue’:
dat = raw dataframe with at least one column of text
wordcol = quoted variable column name where your target text lives (e.g., ‘mytext’)
clean = applies cleaning functions (e.g., punct out, lowercase, etc); T/F default is TRUE
omit_stops = omits stopwords, T/F default is TRUE
lemmatize = transforms raw word to lemmatized form, T/F default is TRUE
split_strings = option to split multiword utterances into separate rows, T/F default is TRUE

Monologue_Cleaned <- clean_monologue(dat=Monologue_Structured, wordcol='mytext', clean=TRUE, omit_stops=TRUE, split_strings=TRUE)
head(Monologue_Cleaned, n=8)
#> # A tibble: 8 × 5
#>   id_row_orig word_clean timestamp mytext   id_row_postsplit
#>   <fct>       <chr>          <int> <chr>               <int>
#> 1 1           <NA>               1 "the"                   1
#> 2 2           girl               2 "girl"                  2
#> 3 3           walk               3 "walked"                3
#> 4 4           down               4 "down "                 4
#> 5 5           <NA>               5 "the "                  5
#> 6 6           street             6 "street"                6
#> 7 7           <NA>               7 "the"                   7
#> 8 8           boxer              8 "boxer"                 8


Step 2: Choose Distance Option/Compute Distances

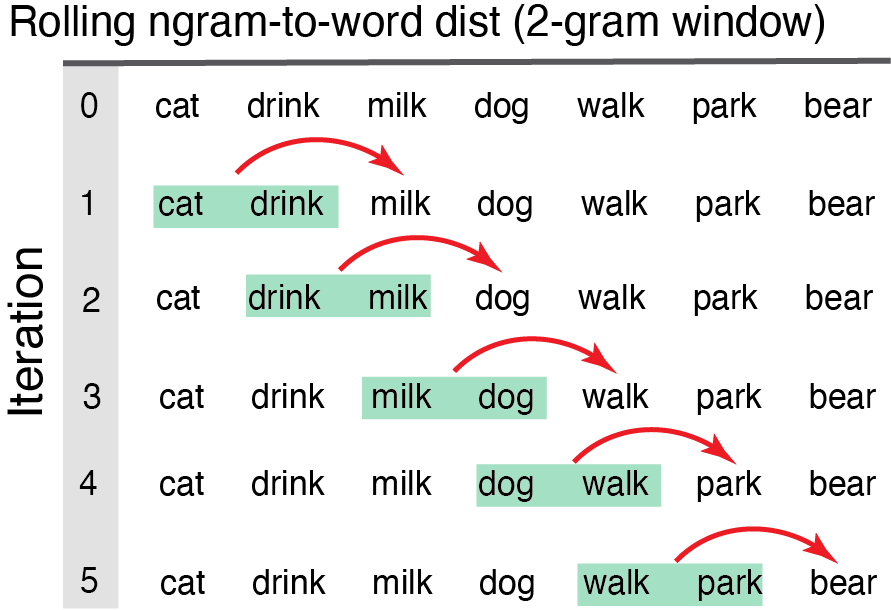

Option 1: Ngram-to-Word Distance (dist_ngram2word)

window rolls from group of words to next word Computes cosine distance for two models (embedding and experiential) using a rolling ngram approach consisting of groups of words (ngrams) to the next word. IMPORTANT the function looks backward from the target word skipping over NAs until filling the desired ngram size.

Arguments to ‘dist_ngram2word’:
dat = dataframe of a monologue transcript cleaned and prepped with clean_monologue fn
ngram = window size preceding each new content word, ngram=1 means each word is compared to the word before it

Ngram2Word_Dists1 <- dist_ngram2word(dat=Monologue_Cleaned, ngram=1) #distance word-to-word
head(Ngram2Word_Dists1)
#> # A tibble: 6 × 7
#>   id_row_orig word_clean timestamp mytext   id_row_postsplit CosDist_1gram_glo
#>   <fct>       <chr>          <int> <chr>               <int>             <dbl>
#> 1 1           <NA>               1 "the"                   1            NA
#> 2 2           girl               2 "girl"                  2            NA
#> 3 3           walk               3 "walked"                3             0.470
#> 4 4           down               4 "down "                 4             0.283
#> 5 5           <NA>               5 "the "                  5            NA
#> 6 6           street             6 "street"                6             0.362
#> # ℹ 1 more variable: CosDist_1gram_sd15 <dbl>

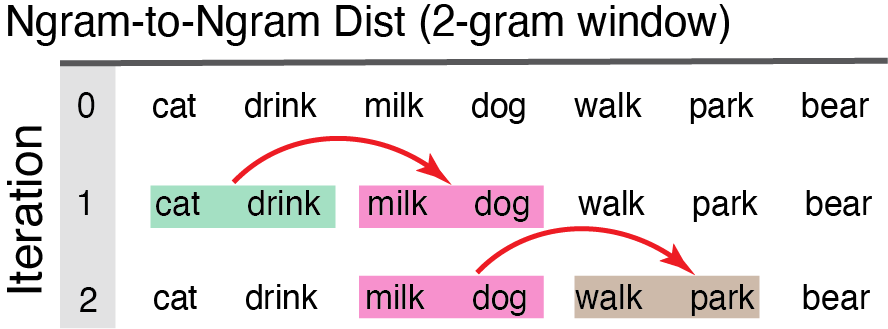

Option 2: Ngram-to-Ngram Distance (dist_ngram2ngram)

semantic distance is derived from chunk to chunk groupings of words

User specifies n-gram size (e.g., ngram=2). Distance computed from each two-word chunk to the next iterating all the way down the dataframe until there are no more words to ‘fill out’ the last ngram. Note this distance function only works on monologue transcripts where there are no speakers delineated and word order matters.

Arguments to ‘dist_ngram2ngram’:
dat = dataframe w/ a monologue sample cleaned and prepped
ngram = chunk size (chunk-to-chunk), in this case ngram=2 means chunks of 2 words compared to the next chunk

Ngram2Ngram_Dist1 <- dist_ngram2ngram(dat=Monologue_Cleaned, ngram=2)
head(Ngram2Ngram_Dist1)
#> # A tibble: 6 × 7
#>   id_row_orig word_clean timestamp mytext   id_row_postsplit CosDist_2gram_GLO
#>   <fct>       <chr>          <int> <chr>               <int>             <dbl>
#> 1 1           <NA>               1 "the"                   1           NA
#> 2 2           girl               2 "girl"                  2           NA
#> 3 3           walk               3 "walked"                3           NA
#> 4 4           down               4 "down "                 4            0.141
#> 5 5           <NA>               5 "the "                  5            0.0608
#> 6 6           street             6 "street"                6            0.319
#> # ℹ 1 more variable: CosDist_2gram_SD15 <dbl>

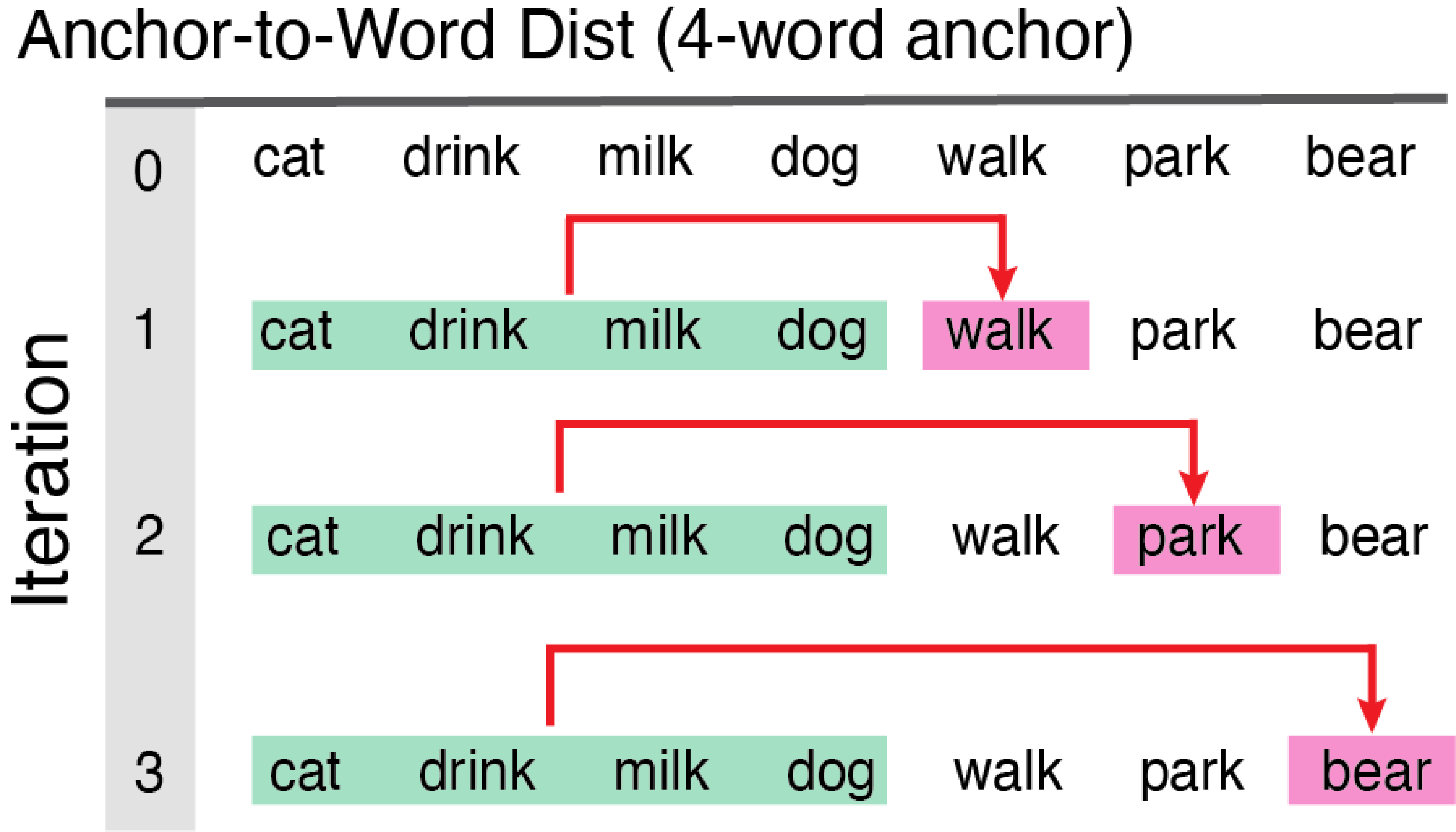

Option 3: Anchor-to-Word Distance (dist_anchor2word)

illustrates distance from each new word of a language sample to an initial chunk of nwords Models semantic distance from each successive new word to the average of the semantic vectors for the first block of N content words. This anchored distance provides a metric of overall semantic drift as a language sample unfolds relative to a fixed starting point.

Arguments to ‘dist_anchor’:
dat = dataframe monologue sample cleaned and prepped using ‘clean_monologue’
anchor_size = size of the initial chunk of words for chunk-to-new-word comparisons fn

Anchored_Dists1 <- dist_anchor(dat=Monologue_Cleaned, anchor_size=8)
head(Anchored_Dists1)
#> # A tibble: 6 × 4
#>   id_row_postsplit word_clean CosDist_Anchor_GLO CosDist_Anchor_SD15
#>              <int> <chr>                   <dbl>               <dbl>
#> 1                1 <NA>                   NA                 NA
#> 2                2 girl                    0.255              0.439
#> 3                3 walk                    0.159              0.173
#> 4                4 down                    0.116              0.275
#> 5                5 <NA>                   NA                 NA
#> 6                6 street                  0.116              0.0457


Dialogues

Step 1: Clean Dialogue Transcript (clean_dialogue)

This could be a conversation transcript or any language sample where you care about talker/interlocutor information (e.g., computing semantic distance across turns in a conversation). Your dataframe should nominally contain a text column and a speaker/talker column.

Arguments to ‘clean_dialogue’ are:
dat = your raw dataframe with at least one column of text AND a talker column
wordcol = column name (quoted) containing the text you want cleaned
whotalks = column name (quoted) containing the talker ID (will convert to factor)
clean = applies cleaning function, T/F default is TRUE
omit_stops = omits stopwords, T/F default is TRUE
lemmatize = transforms raw word to lemmatized form, T/F default is TRUE

Dialogue_Cleaned <- clean_dialogue(dat=Dialogue_Structured, wordcol="mytext", whotalks = "speaker", clean=TRUE, omit_stops=TRUE, lemmatize=TRUE, split_strings=TRUE)
head(Dialogue_Cleaned, n=12)
#> # A tibble: 12 × 7
#>    id_row_orig word_clean mytext    speaker talker id_row_postsplit id_turn
#>    <fct>       <chr>      <chr>     <chr>   <fct>             <int>   <dbl>
#>  1 1           donkey     donkey    P1      P1                    1       1
#>  2 2           astronaut  astronaut P2      P2                    2       2
#>  3 3           bubble     bubble    P1      P1                    3       3
#>  4 4           street     street    P2      P2                    4       4
#>  5 5           pigeon     Pigeon    P1      P1                    5       5
#>  6 6           dolphin    Dolphin   P2      P2                    6       6
#>  7 7           eagle      Eagle     P1      P1                    7       7
#>  8 8           eel        eel       P2      P2                    8       8
#>  9 9           test       test      P1      P1                    9       9
#> 10 10          beagle     Beagle    P2      P2                   10      10
#> 11 11          cow        Cow       P1      P1                   11      11
#> 12 12          tiger      Tiger     P2      P2                   12      12

Step 2: Compute Semantic Distances

Dialogue Distance Turn-to-Turn (dist_dialogue)

Averages the semantic vectors for all content words in a turn then computes the cosine distance to the average of the semantic vectors of the content words in the subsequent turn. Note: this function only works on dialogue samples marked by a talker variable (e.g., conversation transcripts). It averages across the semantic vectors of all words within a turn and then computes cosine distance to all the words in the next turn. You just need to feed it a transcript formatted with clean_dialogue. ‘dist_dialogue’ will return a summary dataframe that distance values aggregated by talker and turn (id_turn).

Arguments to ‘dist_dialogue’ are:
dat = dataframe w/ a dialogue sample cleaned and prepped using ‘clean_dialogue’

DialogueDists <- dist_dialogue(dat=Dialogue_Cleaned)
head(DialogueDists)
#> # A tibble: 6 × 5
#>   turn_count talker n_words glo_cosdist sd15_cosdist
#>        <int> <fct>    <int>       <dbl>        <dbl>
#> 1          1 P1           1       0.993        0.856
#> 2          2 P2           1       0.933        0.413
#> 3          3 P1           1       0.732        0.472
#> 4          4 P2           1       0.927        0.406
#> 5          5 P1           1       0.809        0.624
#> 6          6 P2           1       0.772        0.192


Word Pairs in Columns

Step 1 Clean Word Pairs (clean_paired_cols)

SemanticDistance also computes pairwise distance for data arrayed in columns. Run the function, the cleaned columns will appear in the dataframe.

Arguments to ‘clean_paired_cols’ are:
dat = your raw dataframe with two columns of paired text
word1 = quoted variable reflecting the column name where your first word lives
word2 = quoted variable reflecting the column name where your first word lives
clean = applies cleaning functions, T/F default is TRUE
omit_stops = omits stopwords, T/F default is TRUE
lemmatize = transforms raw word to lemmatized form, T/F default is TRUE

WordPairs_Clean <- clean_paired_cols(dat=Word_Pairs, wordcol1='word1', wordcol2='word2', clean=TRUE, omit_stops=TRUE, lemmatize=TRUE)
head(WordPairs_Clean, n=12) #view head cleaned data
#>    word1     word2 id_row_orig word1_clean1 word2_clean2
#> 1    Dog   trumpet           1          dog      trumpet
#> 2    the    BANANA           2         <NA>       banana
#> 3    rat astronaut           3          rat    astronaut
#> 4   *&^%    lizard           4         <NA>       lizard
#> 5   bird      bird           5         bird         bird
#> 6  shark     shark           6        shark        shark
#> 7  table     38947           7        table         <NA>
#> 8    Dog     leash           8          dog        leash
#> 9    cat       fur           9          cat          fur
#> 10     ^     whale          10         <NA>        whale
#> 11 steak    potato          11        steak       potato
#> 12   bed    pillow          12          bed       pillow


Step 2: Distance Word Pairs Columns (dist_paired_cols)

Generates semantic distances (Glove and SD15) between word pairs in separate columns. Output of ‘dist_paired_cols’ on 2-column arrayed dataframe. Arguments to dist_paired_cols:

Arguments to ‘dist_paired_cols’ are:
dat = dataframe w/ word pairs arrayed in columns cleaned and prepped using ‘clean_2cols’ fn

Columns_Dists <- dist_paired_cols(WordPairs_Clean) #only argument is dataframe
head(Columns_Dists)
#>   word1     word2 id_row_orig word1_clean1 word2_clean2 CosDist_SD15
#> 1   Dog   trumpet           1          dog      trumpet    0.4534507
#> 2   the    BANANA           2         <NA>       banana           NA
#> 3   rat astronaut           3          rat    astronaut    1.2154729
#> 4  *&^%    lizard           4         <NA>       lizard           NA
#> 5  bird      bird           5         bird         bird    0.0000000
#> 6 shark     shark           6        shark        shark    0.0000000
#>   CosDist_GLO
#> 1   0.8409885
#> 2          NA
#> 3   0.9272540
#> 4          NA
#> 5   0.0000000
#> 6   0.0000000


-Unordered Word Lists-

Step 1: Clean unordered word list (clean_unordered)

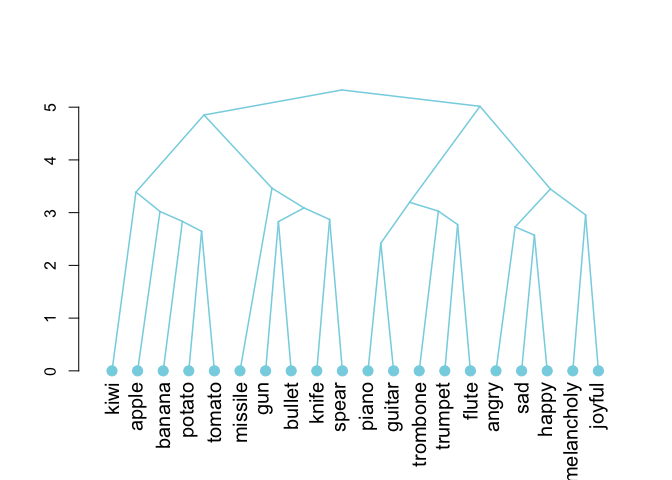

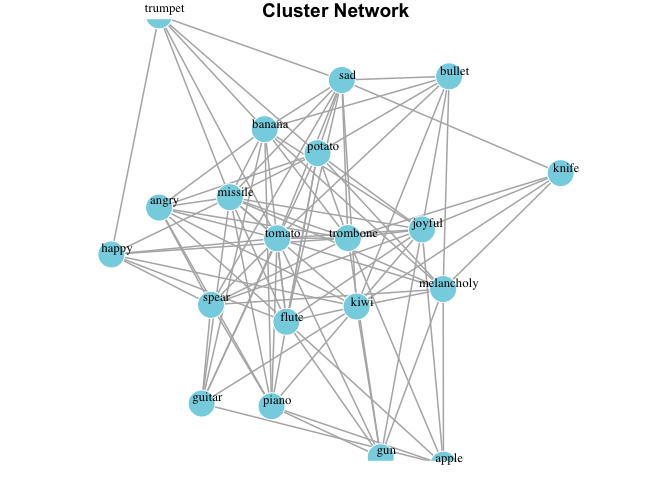

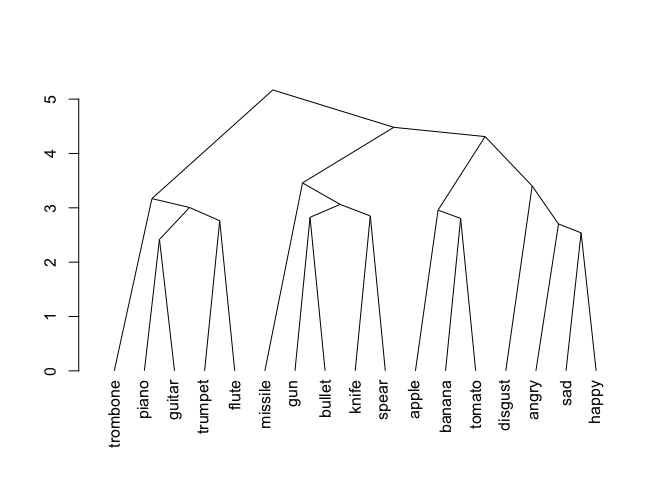

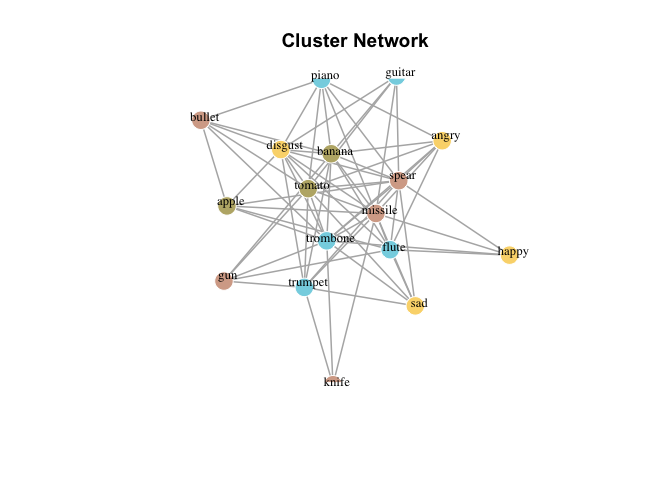

Prep a vector of words for hierarchical clustering or a network visualization. ‘clean_unordered’ will retain only one instance of each string (distinct, no duplicates) and no missing values.

Arguments to ‘clean_unordered’ are:
df = raw dataframe with at least one column of text
wordcol = quoted variable reflecting where your text lives
clean = applies cleaning functions, T/F default is TRUE
omit_stops = omits stopwords, T/F default is TRUE
lemmatize = transforms raw word to lemmatized form, T/F default is TRUE

Clusters_Clean <- clean_unordered(dat=Semantic_Clusters, wordcol="mytext", clean=TRUE, omit_stops=TRUE, lemmatize=TRUE)
head(Clusters_Clean)
#> # A tibble: 6 × 6
#>   id_row_orig word_clean ID_JR mytext   category id_row_postsplit
#>   <fct>       <chr>      <int> <chr>    <chr>               <int>
#> 1 1           trumpet        1 trumpet  music                   1
#> 2 2           trombone       2 trombone music                   2
#> 3 3           flute          3 flute    music                   3
#> 4 4           piano          4 piano    music                   4
#> 5 5           guitar         5 guitar   music                   5
#> 6 6           gun            6 gun      weapon                  6


Step 2: Compute Distance

Distance Matrix All Word Pairs (dist_matrix)

Returns square matrix where each entry [i,j] is the cosine distance between word i and word j. Matrix contains original words as both row and column names for reference. User specifies whether to return a matrix based on embeddings (GLOVE) or experiential norms (SD15).

Arguments to ‘dist_matrix’ are:
dat = dataframe cleaned and prepped using ‘clean_unordered4matrix’ fn
dist_type = quoted argument default is ‘embedding’, other option is “SD15” fn

MyDistMatrix <- dist_matrix(dat=Clusters_Clean, dist_type='embedding')
MyDistMatrix[1:7, 1:7] #Print columns 1:7, rows 1:7 square matrix
#>            trumpet  trombone     flute     piano    guitar       gun     knife
#> trumpet  0.0000000 0.5717885 0.5138417 0.5558156 0.5520448 0.8668525 0.8766921
#> trombone 0.5717885 0.0000000 0.6698538 0.6488034 0.6219389 0.9475109 0.8880578
#> flute    0.5138417 0.6698538 0.0000000 0.4511922 0.5203509 0.9288003 0.8349393
#> piano    0.5558156 0.6488034 0.4511922 0.0000000 0.2730333 0.8374068 0.7856145
#> guitar   0.5520448 0.6219389 0.5203509 0.2730333 0.0000000 0.7653835 0.7351402
#> gun      0.8668525 0.9475109 0.9288003 0.8374068 0.7653835 0.0000000 0.5440601
#> knife    0.8766921 0.8880578 0.8349393 0.7856145 0.7351402 0.5440601 0.0000000


Option 1: Matrix to Dendrogram

str(MyDistMatrix)
#>  num [1:20, 1:20] 0 0.572 0.514 0.556 0.552 ...
#>  - attr(*, "dimnames")=List of 2
#>   ..$ : chr [1:20] "trumpet" "trombone" "flute" "piano" ...
#>   ..$ : chr [1:20] "trumpet" "trombone" "flute" "piano" ...
MyDendro <- viz_clusters(MyDistMatrix, type="dendrogram")

# plots triangular dendrogram with K clusters

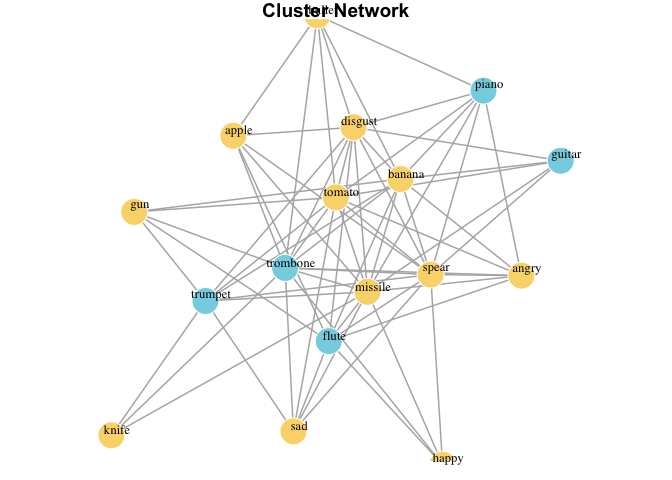

Option 2: Matrix to iGraph Network

MyGraph <- viz_clusters(MyDistMatrix, type="network")


Data Visualization Options

Choose the visualization strategy that best fits your data. Are they ordered? Is it a monologue? Are you interested in chunk-to-chunk distance or distance from each new element to a fixed anchor in the beginning? Your three options are explained to follow:

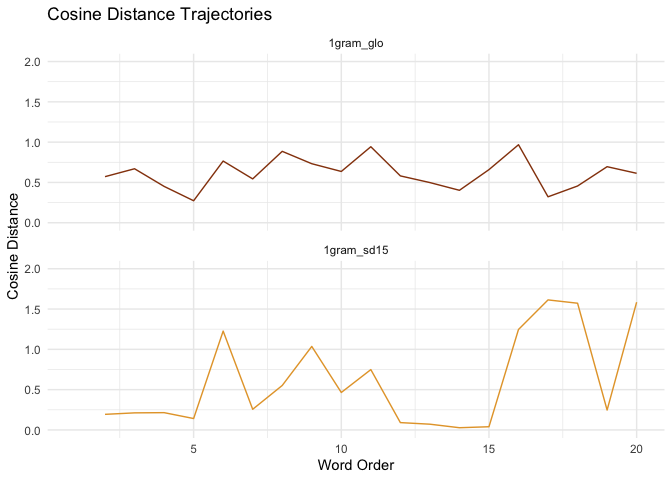

Visualize a Monologue Time Series: ngram2word

Plots the word id_row as x-axis (a proxy for time) by distance measure (facetted GLO and SD15). Add red line annotation if semantic distance jump is z>3 based on the distribution of that time series, Add options for interpolation and rolling average window, zscore threshold for marking annotation.

Arguments to ‘viz_monologue’:
dat dataframe with CosDist values and row_id_postsplit vars appended
interpolate T/F linear interpolation option across missing observations of row, default is TRUE
roll_avg rolling average window size, default is 0
facet T/F option to facet by cosine distance type, default is TRUE
annotate T/F option to append annotations (red lines where z>2.5 for distance jump), default is TRUE

clusters_clean <- clean_monologue(dat=Semantic_Clusters, wordcol='mytext', clean=TRUE, omit_stops=TRUE, split_strings=TRUE)
clusters_dist <- dist_ngram2word(dat=clusters_clean, ngram=1)
FirstViz <- viz_monologue(dat=clusters_dist, interpolate=TRUE, roll_avg=0, facet=TRUE, annotate=TRUE)
#> Warning: Using one column matrices in `filter()` was deprecated in dplyr 1.1.0.
#> ℹ Please use one dimensional logical vectors instead.
#> ℹ The deprecated feature was likely used in the SemanticDistance package.
#>   Please report the issue at
#>   <https://github.com/Reilly-ConceptsCognitionLab/SemanticDistance/issues>.
#> This warning is displayed once every 8 hours.
#> Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
#> generated.
print(FirstViz)
#> Warning: Removed 2 rows containing missing values or values outside the scale range
#> (`geom_line()`).



Monologue Time Series: dist_anchor

grandpa_clean <- clean_monologue(dat=Grandfather_Passage, wordcol='mytext', clean=TRUE, omit_stops=TRUE, split_strings=TRUE)
grandpa_dist <- dist_anchor(grandpa_clean, anchor_size=8)
AnchorViz <- viz_monologue(dat=grandpa_dist, interpolate=TRUE, roll_avg=0, facet=TRUE, annotate=TRUE)
print(AnchorViz)
#> Warning: Removed 2 rows containing missing values or values outside the scale range
#> (`geom_line()`).



Time series plot for dialogues

Color point by talker

#TBA

#Animate Time Series

#TBA




—Extras—

Sample Language Transcripts

SemanticDistance contains some sample language transcripts that will automatically load when you call the package. These can be helpful for evaluating and debugging your own own transcripts.

Monologue_Structured: Dataframe 1-word per row already split no missing observations

head(Monologue_Structured)
#>   timestamp mytext
#> 1         1    the
#> 2         2   girl
#> 3         3 walked
#> 4         4  down
#> 5         5   the
#> 6         6 street

Monologue_Messy: Dataframe text arrayed in one column ‘mytext’, missing observations, junk, multiword phrases contains metadata (simulated timestamps

head(Monologue_Messy)
#>              mytext
#> 1  The dog is blue.
#> 2               Dog
#> 3               Dog
#> 4              Some
#> 5 My name is Frank.
#> 6               Dog

Dialogue_Structured: Dataframe simulating ‘perfect’ conversation transcript, one word per turn, two talkers

head(Dialogue_Structured)
#>      mytext speaker
#> 1    donkey      P1
#> 2 astronaut      P2
#> 3    bubble      P1
#> 4    street      P2
#> 5    Pigeon      P1
#> 6   Dolphin      P2

Dialogue_Messy: Dataframe simulating ‘dirty’ conversation transcript, multiple lines per person, lots of stopwords, missing obervations, stray transcription symbols

head(Dialogue_Messy)
#>                  word speaker
#> 1            Hi Peter    Mary
#> 2    Donkeys are gray    Mary
#> 3             Leopard    Mary
#> 4 pop goes the weasel    Mary
#> 5              Pigeon    Mary
#> 6             Dolphin    Mary

Word_Pairs: Dataframe with word pairs arrayed in two columns

head(Word_Pairs)
#>   word1     word2
#> 1   Dog   trumpet
#> 2   the    BANANA
#> 3   rat astronaut
#> 4  *&^%    lizard
#> 5  bird      bird
#> 6 shark     shark

Semantic_Clusters: Dataframe ordered simulated semantic fluency data switching between categories every ten words (animals, tools, musical instruments, fruits)

head(Semantic_Clusters, n=20)
#>    ID_JR     mytext  category
#> 1      1    trumpet     music
#> 2      2   trombone     music
#> 3      3      flute     music
#> 4      4      piano     music
#> 5      5     guitar     music
#> 6      6        gun    weapon
#> 7      7      knife    weapon
#> 8      8    missile    weapon
#> 9      9     bullet    weapon
#> 10    10      spear    weapon
#> 11    11      apple fruit-veg
#> 12    12     banana fruit-veg
#> 13    13     potato fruit-veg
#> 14    14     tomato fruit-veg
#> 15    15       kiwi fruit-veg
#> 16    16        sad  emotions
#> 17    17      happy  emotions
#> 18    18      angry  emotions
#> 19    19 melancholy  emotions
#> 20    20     joyful  emotions

Grandfather_Passage: Grandfather Passage – a standardized reading passage, unsplit

GP <- tidyr::separate_rows(Grandfather_Passage, mytext, sep=" ")
head(GP, n=50)
#> # A tibble: 50 × 1
#>    mytext
#>    <chr>
#>  1 You
#>  2 wish
#>  3 to
#>  4 know
#>  5 about
#>  6 my
#>  7 grandfather.
#>  8 Well,
#>  9 he
#> 10 is
#> # ℹ 40 more rows
